4 axis spindle rotary CNC woodworking machine 0 -180 degree

KH4A ATC CNC Router is a professional special machining center used for curved surface processing ,fits custom furniture and cutting material, completely replace the traditional push table saw and electronic cutting saw, get rid of the traditional dependence on artificial cutting mode,through combined with a dedicated production design software, realize intelligent production. Maximum economy and efficiency!

Main Features

1) Four axis linkage, adapt to ±90 degrees angle rendom rotation;2) Excellent parts: adopt Japan yaskawa servo drive system, Taiwan original guide rail and rack;

3) Work schedule can be customized according to the workpiece condition.

Model
KH4A
X-Y-Z axis working area
1300*2500*400mm
Machine size
2100*3500*2500mm
Repositioning resolution
0.02mm
X-Y movement
Rack and pinion, gear drive/Taiwan
Z movement
Ball screw drive/Germany
Guide
Linear 20mm square/Taiwan
Spindle power
9.6KW Italy HSD
(ISO30, fan cooling ATC)
Spindle speed
24000rpm
Inverter power
11KW Inovance
Auto tool changer
 linear type with tool chank
Drive motors
Japan Yaskawa Servo Motor
Working voltage
AC380V/50-60Hz, 3-phase
Command code
G code
Computer interface
USB 2.0
Software
Artcam , Alphacam copy
Controls
Syntec 6MB
Standard equipment included
1.Auto tool length compensation device
2. oil lubrication system
3.vacuum table with the 7.5 kW Chinese pump
4.Tool shanks
5.Positioning pins
Optional
3 kW Dust collector
5.5 kW Becker vacuum pump
Detailed Images

Ball screw Taiwan TBI

(TBI, Taiwan) produce C5 class ball screw, precision is less than 0.03mm,Ball screw has dust prove device on both ends and both Layers, may completely isolate dust, and then prolong life.

Liner guide way 20mm square

(Lapping, Taiwan) Precision N class liner guide way with
precision less then 0.02mm The liner guide way has middle preloading design, features of high precision and stability may

precision rack and pinion transmission-Herion

The transmission is by rack and pinion made by famous Germany manufacturer. The precision is less than 0.02mm Tooth face is heat treated with features of high efficiency transmission, Bearing high torque, low noise.

9.6KW HSD air cooling -Italy

Fan cooling type automatic tool change high
frequency spindle ,Rotrary 180 degree

Spindle is made by HSD, Italy, the features are high
speed and low noise.

YASKAWA servo motor 850W

YASKAWA, Japan servo motor,Σ-V system is newest type, With high speed, high precision. Motor’s max. torque can reach 350% which may shorten speed up and slow down time. The servo motor can response instantly. High resolution makes high

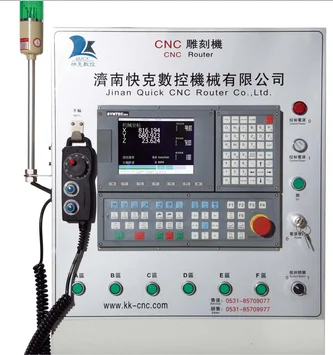

Syntec 6MB

.New Four-axis linkage motion mode to achieve comprehensive controlling
Support drive and spindle error alarm function
Large storage space, perfect U disk compatibility, fast reading speed, safe and reliable U disk-processing.
Option

Vacuum pump 5.5 KW Becker

250M3/h
Made in Germany

Quick maintenance keeps machine’s running stable.
Two sections of special filtration systems, keep dust from entering into machine inside and prolong machine life.

3 kW Dust collector



Double bags dust collector to clean dust in time, Keep the air clean.

Centralized automatic lubricate system

Supplying lubricant at fixed amount by fixed time to
prolong life of liner guide way and ball screw.
Equipped with detect system for short of oil, low pressure and high pressure.
1. High Precision All machinery that are launched by quick cnc, has tested with dynamic balancing instruments and other advanced manufacturing equipment and measuring instruments .
2. High Stability we have about 10 years Experience ,all the machines are with heavy duty full stell welding ,tempering precision ,it is solid and non-deformed .
3. Well-known brand Series of QUICK CNC router are marketed widely in more than 100 countries ,after serval years development ,quickcnc has become a leading brand in this industry .
4. Flexibility We have a strong R&D team, so that we can design specific machinery to satisfy customers’ requirements.
5. On time We try to deliver machinery on time so that our customers does not need to waste extra time to wait. We also respond our customer at the first time in order to satisfy customers’ requirement.
